High Shear Mixing
High Shear
Mixers
For homogeneous and rapid flash blend mixing of different types of solid material.
- Liquid capacity
- 750–24,000 LPH
- Powder capacity
- 250–5,000 kg
- Motor power
- 2.2–25 kW
- Weight
- 75–220 kg
Speak to us directly: +44 (0)1455 220179
ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixers & Blenders are practical and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Powder-Liquid Inline Mixer forces the liquid through a venturi, which sucks the powder into the flow stream. It’s then forced through the inline high-shear mixer/homogeniser to create a homogeneous product blend.
Pictures and dimensions on the website are given for indication purposes only. They may be subject to change at any time and form no part of any contract.
The machine
Five inline mixers.
One pass, no air.
Working principle
- The high-speed rotation of the rotor blades creates a vacuum effect and draws the mixture to the rotor-stator group.
- By the effect of centrifugal force, it is forced to pass between the outer wall of the rotor blades and the inner wall of the stator.
- It tries to pass through the narrow gap between the rotor and stator, the fluid product particles disintegrate and become homogeneous.
Since the homogenisation process takes place in a line, this machine is also called an inline homogeniser.
Advantages
- Runs at high and low temperatures
- Powders that are extremely difficult to wet are processed in one pass
- Provides viscosity increase with cutting force effect
- Suitable for processing high viscosity products
- Provides higher efficiency even in hard wet powder
- Minimises processing time
- Simple installation, ergonomic design, easy maintenance
- Sealing components can be replaced easily
- Easy to use and clean
- Unique design according to your needs in accordance with the conditions of use
- Low maintenance costs
- According to traditional methods: provides 80% energy saving, production time is reduced by 80%, provides better mixing, increases product quality
Specification
The models.
| Model | Liquid capacity (LPH) | Powder capacity (kg) | Motor power (kW) | Weight (kg) |
|---|---|---|---|---|
| E-MX10 | 750–1,000 | 250 | 2.2 | 75 |
| E-MX50 | 5,000–10,000 | 1,500 | 4 | 120 |
| E-MX50+ | 5,000–10,000 | 2,500 | 4.5–7.7 | 120 |
| E-MX100 | 9,000–18,000 | 2,500 | 25 | 190 |
| E-MX100+ | 9,000–24,000 | 5000 | 11 | 220 |

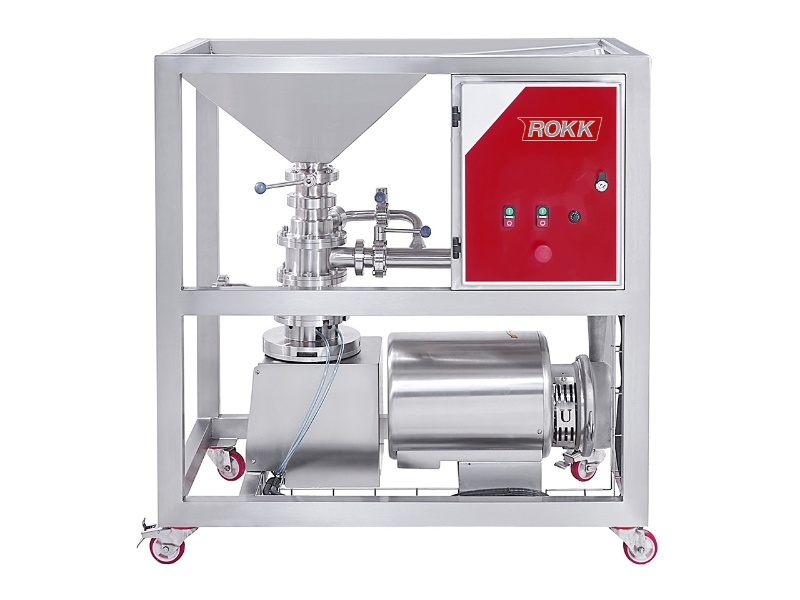

E-MX10
| E-MX10 | Technical data |
|---|---|
| Liquid-fluid capacity | 750 to 1,000 LPH |
| Powder capacity | 250 kg |
| Motor power | 2.2 kW |
| Liquid inlet | DN20 |
| Fluid outlet | DN40 |
| Powder inlet | DN40 |
| Dimensions (L x W x H) | 895 x 510 x 712 mm |
| Nett weight | 75 kg |
Technical specifications
- The parts in contact with the product are made of 316L stainless steel.
- The frame is made of 304 stainless steel.
- Stainless steel electrical panel (IP65)
- Liquid product inlet pressure gauge
- Powder product inlet vacuum pressure gauge
- Specially designed Rotor/Stator disintegrator system
- Application-specific high cutting force
- Operator-controlled Powder-Fluid distribution
- AC motor driver
- Speed controlled (Frequency setting)
- Mechanical one-way sealing compound
- Automatic cooling system
- Minimises processing time
- Design suitable for CIP and SIP
- Low energy consumption and high performance
E-MX50
| E-MX50 | Technical data |
|---|---|
| Liquid-fluid capacity | 5,000 to 10,000 LPH |
| Powder capacity | 1,500 kg |
| Motor power | 4 kW |
| Liquid inlet | DN25 |
| Fluid outlet | DN40 |
| Powder inlet | DN50 |
| Dimensions (L x W x H) | 1005 x 560 x 1288 mm |
| Nett weight | 120 kg |
Technical specifications
- The parts in contact with the product are made of 316L stainless steel.
- The frame is made of 304 stainless steel.
- Stainless steel electrical panel (IP65)
- Liquid product inlet pressure gauge
- Powder product inlet vacuum pressure gauge
- Specially designed Rotor/Stator disintegrator system
- Application-specific high cutting force
- Operator-controlled Powder-Fluid distribution
- AC motor driver
- Speed controlled (Frequency setting)
- Mechanical one-way sealing compound
- Automatic cooling system
- Minimises processing time
- Design suitable for CIP and SIP
- Low energy consumption and high performance
E-MX50+
| E-MX50+ | Technical data |
|---|---|
| Liquid-fluid capacity | 5,000 to 10,000 LPH |
| Powder capacity | 2,500 kg |
| Motor power | 4.5 to 7.7 kW |
| Liquid inlet | DN25 |
| Fluid outlet | DN40 |
| Powder inlet | DN50 |
| Dimensions (L x W x H) | 1036 x 800 x 837 mm |
| Nett weight | 120 kg |
Technical specifications
- The parts in contact with the product are made of 316L stainless steel.
- The frame is made of 304 stainless steel.
- Stainless steel electrical panel (IP65)
- Liquid product inlet pressure gauge
- Powder product inlet vacuum pressure gauge
- Specially designed Rotor/Stator disintegrator system
- Application-specific high cutting force
- Operator-controlled Powder-Fluid distribution
- AC motor driver
- Speed controlled (Frequency setting)
- Mechanical one-way sealing compound
- Automatic cooling system
- Minimises processing time
- Design suitable for CIP and SIP
- Low energy consumption and high performance
E-MX100
| E-MX100 | Technical data |
|---|---|
| Liquid-fluid capacity | 9,000 to 18,000 LPH |
| Powder capacity | 2,500 kg |
| Motor power | 25 kW |
| Liquid inlet | DN40 |
| Fluid outlet | DN50 |
| Powder inlet | DN50 |
| Dimensions (L x W x H) | 1604 x 943 x 910 mm |
| Nett weight | 190 kg |
Technical specifications
- The parts in contact with the product are made of 316L stainless steel.
- The frame is made of 304 stainless steel.
- Stainless steel electrical panel (IP65)
- Liquid product inlet pressure gauge
- Powder product inlet vacuum pressure gauge
- Specially designed Rotor/Stator disintegrator system
- Application-specific high cutting force
- Operator-controlled Powder-Fluid distribution
- AC motor driver
- Speed controlled (Frequency setting)
- Mechanical one-way sealing compound
- Automatic cooling system
- Minimises processing time
- Design suitable for CIP and SIP
- Low energy consumption and high performance

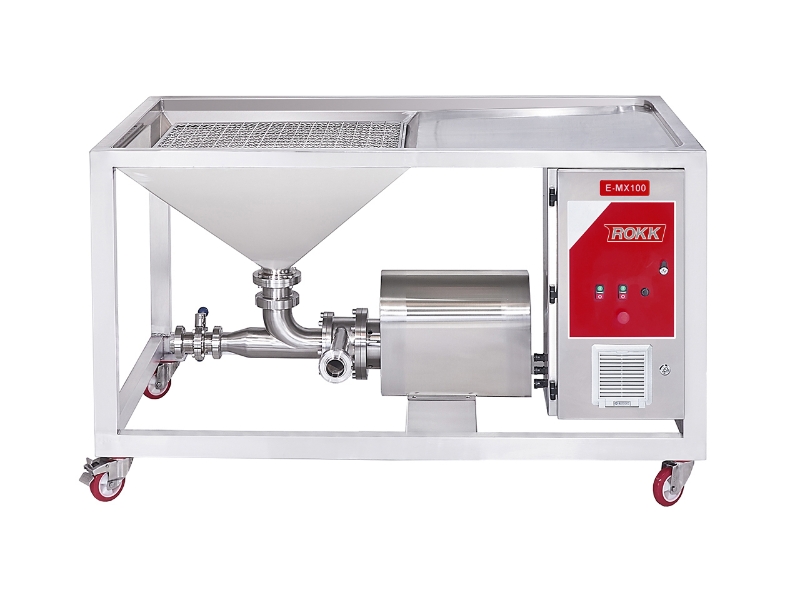

E-MX100+
| E-MX100+ | Technical data |
|---|---|
| Liquid-fluid capacity | 9,000 to 24,000 LPH |
| Powder capacity | 5000 kg |
| Motor power | 11 kW |
| Liquid inlet | DN50 |
| Fluid outlet | DN50 |
| Powder inlet | DN100 |
| Dimensions (L x W x H) | 1600 x 840 x 1027 mm |
| Nett weight | 220 kg |
Technical specifications
- The parts in contact with the product are made of 316L stainless steel.
- The frame is made of 304 stainless steel.
- Stainless steel electrical panel (IP65)
- Liquid product inlet pressure gauge
- Powder product inlet vacuum pressure gauge
- Specially designed Rotor/Stator disintegrator system
- Application-specific high cutting force
- Operator-controlled Powder-Fluid distribution
- AC motor driver
- Speed controlled (Frequency setting)
- Mechanical one-way sealing compound
- Automatic cooling system
- Minimises processing time
- Design suitable for CIP and SIP
- Low energy consumption and high performance
