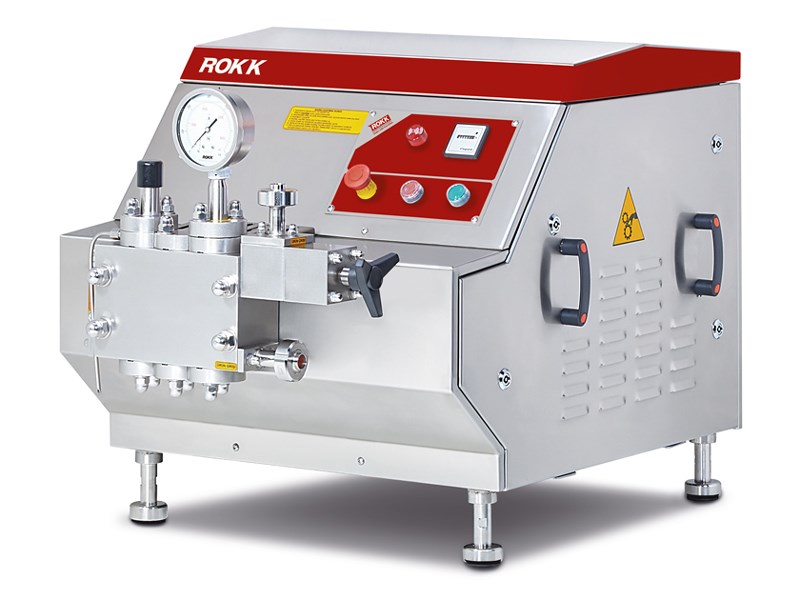

ROKK Series 2 Homogeniser

2 Series Homogeniser (100 - 300 litres / hour)

Enquire

High pressure homogenizer with excellent performance and reliability.

ROKK 2 Series homogenizers / piston pumps are available with capacities from 100 - 300 litres / hour as no stage, one stage or double stage depending on application.

The Principle of Homogenisation

The unhomogenised product enters the valve area at high pressure and low velocity. As the product enters the adjustable, close clearance area between the valve and the seat, there is a rapid increase in velocity with a corresponding decrease in pressure. The intense energy release causes turbulence and localised pressure differences, which tear apart the particles. The homogenised product impinges on the impact ring and exits at a pressure sufficient for the next processing stage.

MonoBlock

The MonoBlock (compression head) is manufactured out of a high tensile, corrosion-resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The block features a removable top, bottom, and front flanges for easy maintenance and has an ultra-clean design without dead ends. The semi-spherical valves system allows smooth machine operation, for both low and high-viscosity products.

Machine Features

  • Manufacturer: ROKK
  • Model: 2-Series
  • Function: Homogeniser
  • 2-Series capacities available ranging from 100 - 300 litres / hour
  • Number of stages: 2-Stage machine
  • Valve design: Mushroom
  • Piston design: Stainless steel (Ceramic coated)
  • Tungsten carbide homogenising valves
  • Total installed power: 3 kW
  • Number of plungers: 3
  • Includes gear reducer
  • Electrics: 380V / 50 Hz / 3 Phase

Specifications

Dimensions (mm) 652w x 1052d x 675h
Weight 237 kg
Capacity From 100-300 lt/h
Motor Power 3 kW
Water consumption 50 ltr/hr
Number of Plungers 3

Additional information

For more information about ROKK Homogenisers
please call +44 (0)1455 220179 or email sales@rokk-processing.com



Need spares for this machine?

Parts Station stocks a host of spare parts for dairy and ice cream machinery.

With international shipping and door-to-door courier services, Parts Station can supply them quickly before any major disruption occurs. Click below to go to the site.

Servicing for this machine

All ROKK machines come with a one year warranty, backed-up by highly skilled, experienced and approachable service engineers, fully trained in both electrical, mechanical and refrigeration.

“With the service, the quality and innovation of the machinery as well as the end product, I would highly recommend any ROKK machinery to any ice cream manufacturer.”

Managing Director of Yarde Farm Ice Cream

Datasheets

  • ROKK S2
