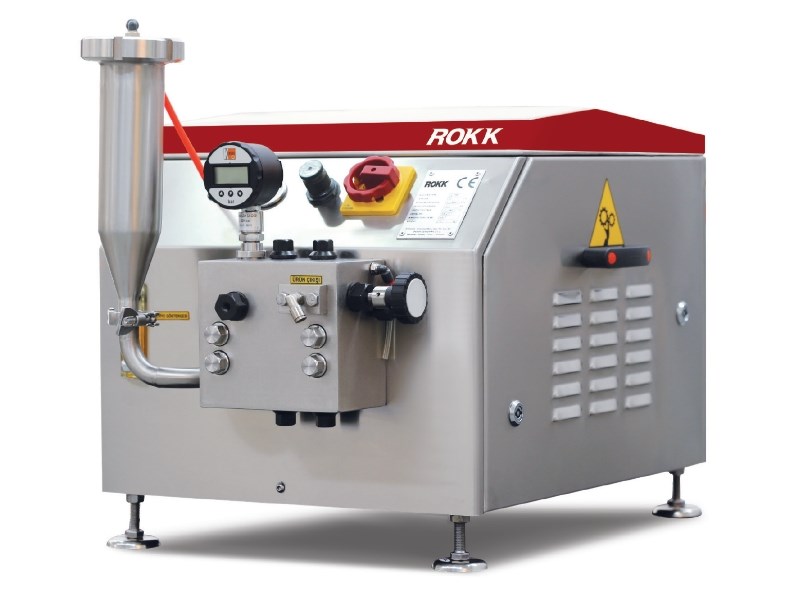

ROKK Series 1 Homogeniser

1 Series Homogeniser (20 – 50 litres / hour)

Enquire

The ROKK 1 Series high pressure homogenizers and piston pumps have excellent performance and reliability in the latest design concept.

ROKK 1 Series homogenizers / piston pumps are available with capacities from 20 – 50 litres / hour up to 1600 bar as one stage or double stage depending on the application.

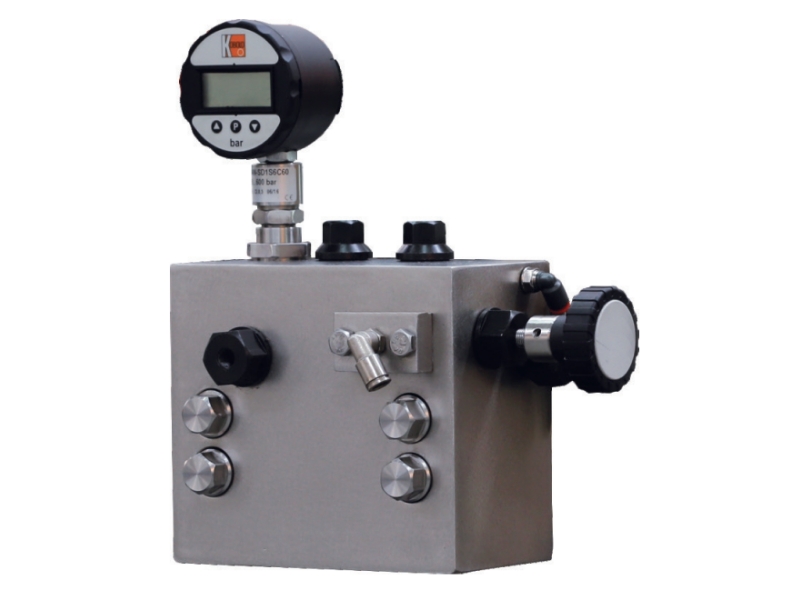

MonoBlock

The MonoBlock (compression head) is manufactured out of a high tensile, corrosion resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The semi-spherical valves system allows smooth machine operation, for both low and high-viscosity products.

Specifications

Number of plungers 2
Capacity From 20 - 50 lt/h
Weight 110 kg
Motor Power 2.2 kW

Machine Features

  • Designed according to the EU safety rules (CE standards)
  • Engineered, manufactured, and tested according to ISO EN 9001 Quality System
  • Engineered and designed for easy maintenance and cleaning (CIP and SIP)
  • Suitable for abrasive and viscous products
  • Ceramic-coated stainless steel plungers
  • Cobalt carbide material suction and delivery valves & valve seats
  • Tungsten Carbide homogenising valves
  • Compression Monoblock head formed by single forged block in special stainless steel
  • Automatic homogenisation pressure controller with manual adjustment
  • Stainless steel construction (Frame) and electrical panel board
  • Less footprint with ergonomic design
  • Sanitary design analogue diaphragm high-pressure gauge
  • V belts drive train and gearbox speed reduction unit
  • AC motor drive



Need spares for this machine?

Parts Station stocks a host of spare parts for dairy and ice cream machinery.

With international shipping and door-to-door courier services, Parts Station can supply them quickly before any major disruption occurs. Click below to go to the site.

Servicing for this machine

All ROKK machines come with a one year warranty, backed-up by highly skilled, experienced and approachable service engineers, fully trained in both electrical, mechanical and refrigeration.

“With the service, the quality and innovation of the machinery as well as the end product, I would highly recommend any ROKK machinery to any ice cream manufacturer.”

Managing Director of Yarde Farm Ice Cream

Datasheets

  • ROKK S1
