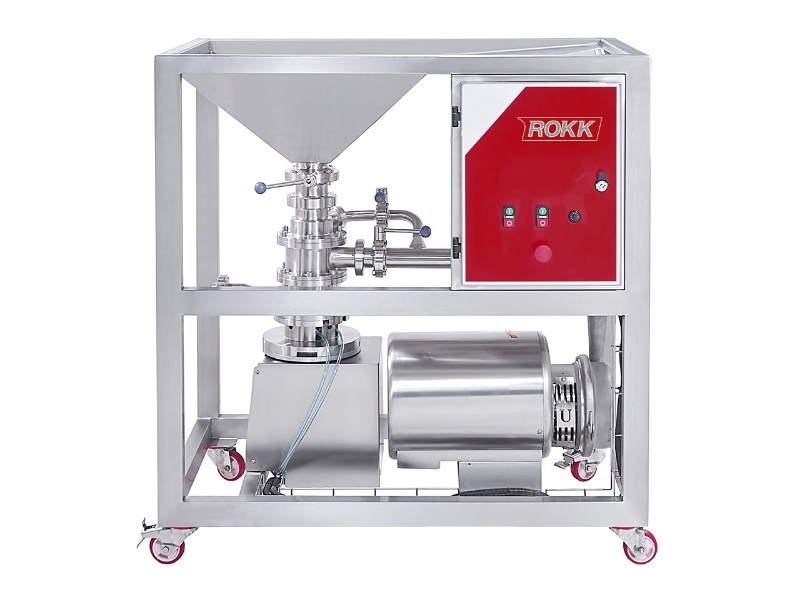

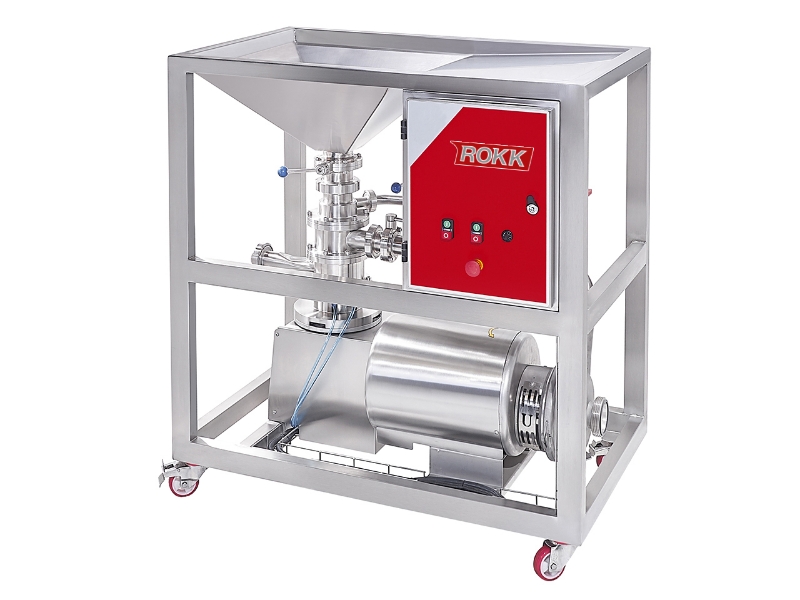

ROKK E-MX50
For homogeneous and rapid flash blend mixing of different types of solid material
ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixers & Blenders are practical and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Powder-Liquid Inline Mixer forces the liquid through a venturi, which sucks the powder into the flow stream while on its way to the inline high-shear mixer/homogeniser.
Specifications
| Liquid-Fluid Capacity | 5.000 to 10.000 LPH |
| Powder Capacity | 1,500 Kg |
| Motor Power | 4 kW |
| Liquid Inlet | DN25 |
| Fluid Outlet | DN40 |
| Powder Inlet | DN50 |
| Dimensions (L x W x H) in mm | 1005 x 560 x 1288 |
| Nett Weight | 120 Kg |
Technical Specification:
- The parts in contact with the product are made of 316L Stainless Steel
- The frame is made of 304 Stainless Steel
- Stainless Steel Electrical Control Panel (IP65)
- Liquid Product Inlet Pressure Gauge
- Powder Product Inlet Vacuum Pressure Gauge
- Specially Designed Rotor – Stator Disintegration System
- Application specific High Cutting Force
- Operator Controlled Powder-Fluid distribution
- AC Motor
- Speed Controlled (Frequency Controlled Inverter)
- Flushed Double Mechanical Seal – Optional for High Operating Temp
- Minimizes Processing Time
- Design Suitable for ClP
- Low Energy Consumption and High Performance
Need spares for this machine?
DairyBits stocks a host of spare parts for dairy and ice cream machinery.
With international shipping and door-to-door courier services, Dairy Bits can supply them quickly before any major disruption occurs. Click below to go to the site.
Servicing for this machine
All ROKK machines come with a one year warranty, backed-up by highly skilled, experienced and approachable service engineers, fully trained in both electrical, mechanical and refrigeration.
