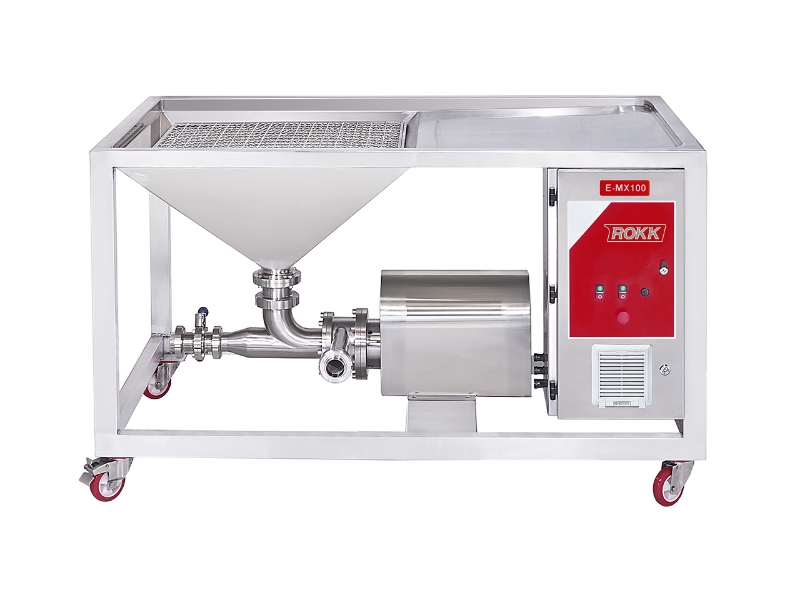

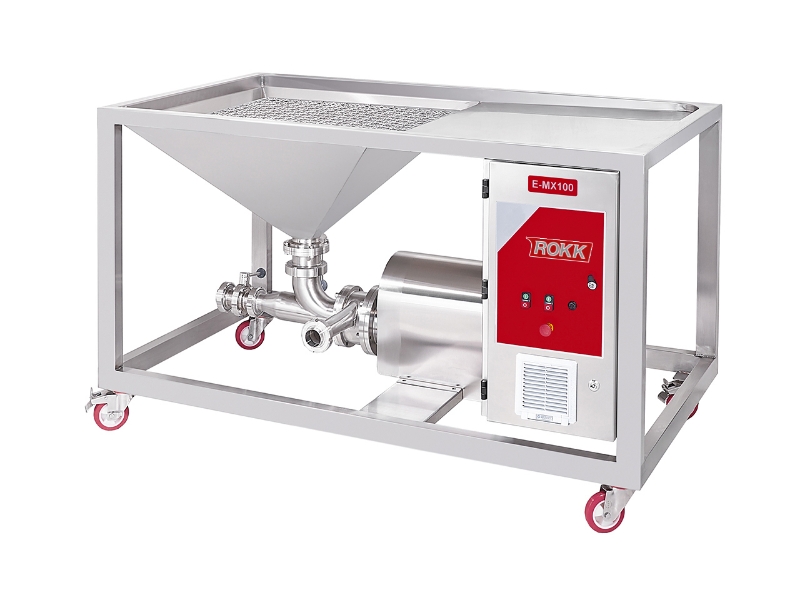

ROKK E-MX100+ | Powder-Liquid & Liquid-Liquid Inline High Shear Mixer & Blender

ROKK E-MX100+

Enquire

For homogeneous and rapid flash blend mixing of different types of solid material

ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixers & Blenders are practical and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Powder-Liquid Inline Mixer forces the liquid through a venturi, which sucks the powder into the flow stream while on its way to the inline high-shear mixer/homogeniser.

Specifications

Liquid-Fluid Capacity 9.000 to 24.000 LPH
Powder Capacity 4000 Kg
Motor Power 11 kW
Liquid Inlet DN50
Fluid Outlet DN65
Powder Inlet DN65
Dimensions (L x W x H) in mm 1604 x 943 x 910
Nett Weight 220 Kg

Technical Specification:

  • The parts in contact with the product are made of 316L Stainless Steel
  • The frame is made of 304 Stainless Steel
  • Stainless Steel Electrical Control Panel (IP65)
  • Liquid Product Inlet Pressure Gauge
  • Powder Product Inlet Vacuum Pressure Gauge
  • Specially Designed Rotor – Stator Disintegration System
  • Application specific High Cutting Force
  • Operator Controlled Powder-Fluid distribution
  • AC Motor
  • Speed Controlled (Frequency Controlled Inverter)
  • Flushed Double Mechanical Seal – Optional for High Operating Temp
  • Minimizes Processing Time
  • Design Suitable for ClP
  • Low Energy Consumption and High Performance
