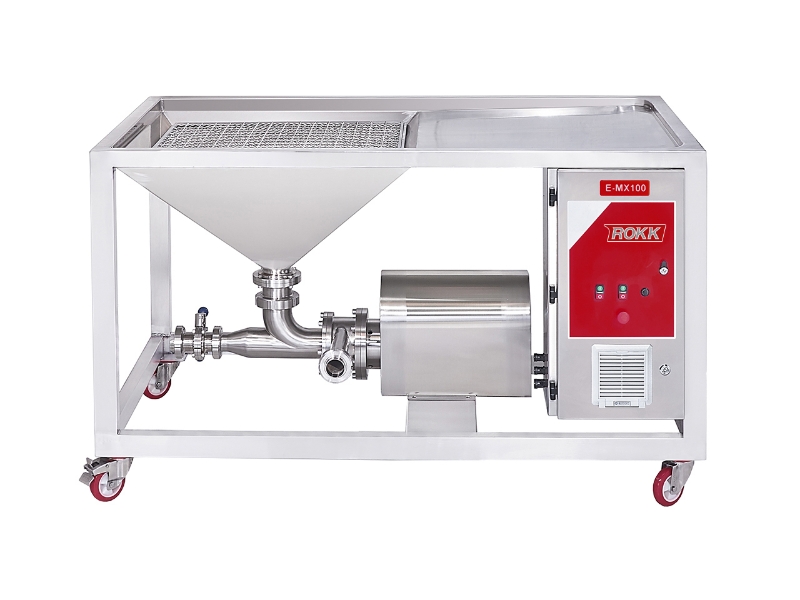

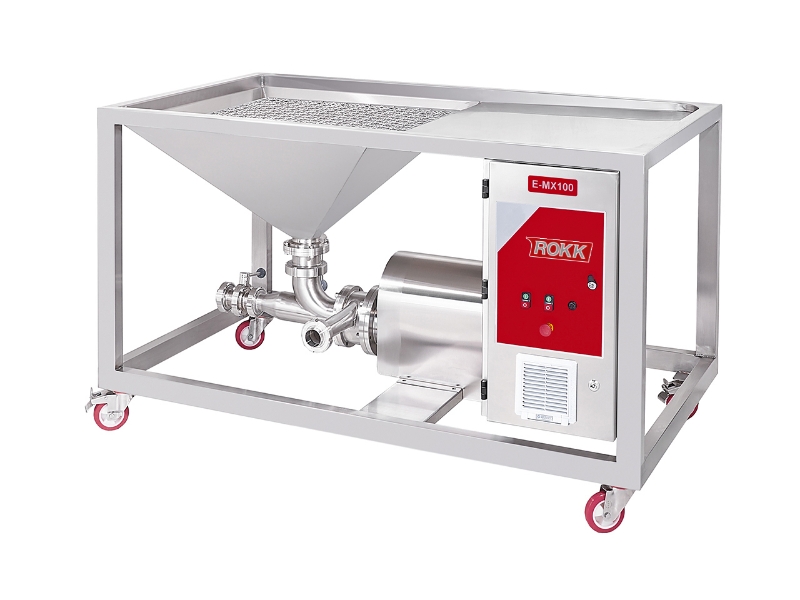

ROKK E-MX100 | Powder-Liquid & Liquid-Liquid Inline High Shear Mixer & Blender

ROKK E-MX100

Enquire

For homogeneous and rapid flash blend mixing of different types of solid material

ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixers & Blenders are practical and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Powder-Liquid Inline Mixer forces the liquid through a venturi, which sucks the powder into the flow stream while on its way to the inline high-shear mixer/homogeniser.

Specifications

Liquid-Fluid Capacity 9.000 to 18.000 LPH
Powder Capacity 2,500 Kg
Motor Power 25 kW
Liquid Inlet DN40
Fluid Outlet DN50
Powder Inlet DN50
Dimensions (L x W x H) in mm 1604 x 943 x 910
Nett Weight 190 Kg

Technical specifications

· The parts in contact with the product are made of 316L stainless steel.
· The frame is made of 304 stainless steel.
· Stainless steel electrical panel (IP65)
· Liquid product inlet pressure gauge
· Powder product inlet vacuum pressure gauge
· Specially designed Rotor/Stator disintegrator system
· Application-specific high cutting force
· Operator-controlled Powder-Fluid distribution
· AC motor driver
· Speed controlled (Frequency setting)
· Mechanical one-way sealing compound
· Automatic cooling system
· Minimises processing time
· Design suitable for CIP and SIP
· Low energy consumption and high performance

Advantages

· Runs at high and low temperatures
· Powders that are extremely difficult to wet are processed in one pass
· Provides viscosity increase with cutting force effect
· Suitable for processing high viscosity products
· Provides higher efficiency even in hard wet powder
· Minimises processing time
· Simple installation, ergonomic design, easy maintenance
· Sealing components can be replaced easily
· Easy to use and clean
· Unique design according to your needs in accordance with the conditions of use
· Low maintenance costs
· According to traditional methods:
- Provides 80% energy saving
- Production time is reduced by 80%
- Provides better mixing
- Increases product quality

Working principle

· The high-speed rotation of the rotor blades creates a vacuum effect and draws the mixture to the rotor-stator group.
· By the effect of centrifugal force, it is forced to pass between the outer wall of the rotor blades and the inner wall of the stator.
· It tries to pass through the narrow gap between the rotor and stator, the fluid product particles disintegrate and become homogeneous.

Since the homogenisation process takes place in a line, this machine is also called an inline homogeniser.
