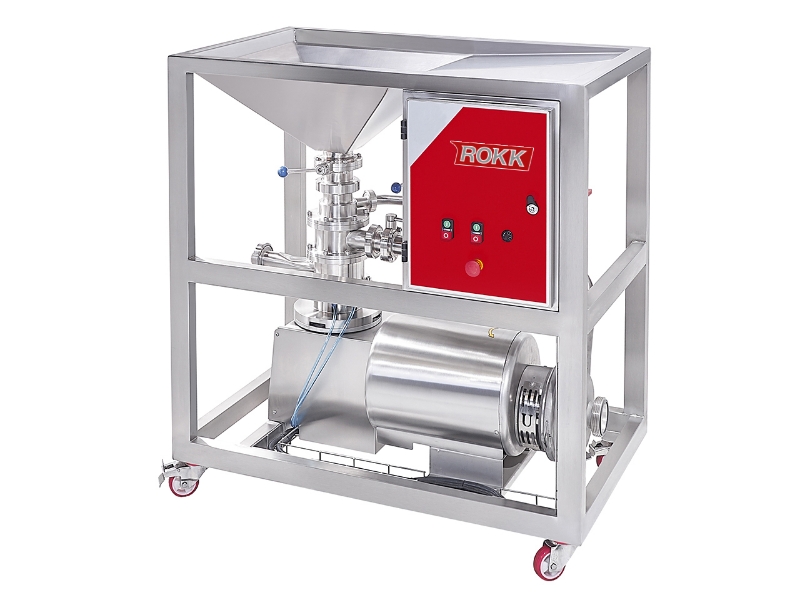

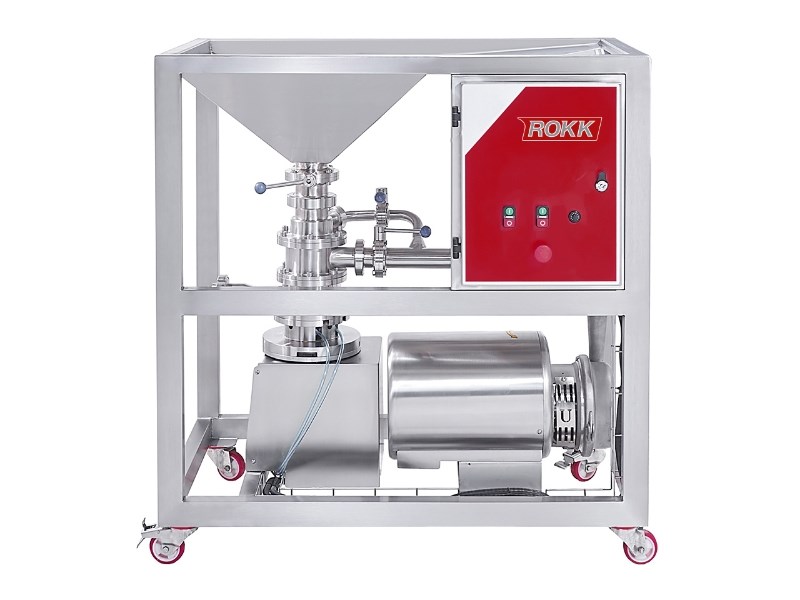

ROKK E-MX10 | Powder-Liquid & Liquid-Liquid Inline High Shear Mixer & Blender

ROKK E-MX10

Enquire

For homogeneous and rapid flash blend mixing of different types of solid material

ROKK Powder-Liquid & Liquid-Liquid Inline High Shear Mixers & Blenders are practical and flexible systems for Homogeneous and rapid flash blend mixing of different types of solid material without the incorporation of air into the product. ROKK Powder-Liquid Inline Mixer forces the liquid through a venturi, which sucks the powder into the flow stream while on its way to the inline high-shear mixer/homogeniser.

Specifications

Liquid-Fluid Capacity 750 to 1.000 LPH
Powder Capacity 150 Kg
Motor Power 2.2 kW
Liquid Inlet DN20
Fluid Outlet DN40
Powder Inlet DN40
Dimensions (L x W x H) in mm 900 x 520 x 715
Nett Weight 75 Kg

Technical Specification:

  • The parts in contact with the product are made of 316L Stainless Steel
  • The frame is made of 304 Stainless Steel
  • Stainless Steel Electrical Control Panel (IP65)
  • Liquid Product Inlet Pressure Gauge
  • Powder Product Inlet Vacuum Pressure Gauge
  • Specially Designed Rotor – Stator Disintegration System
  • Application specific High Cutting Force
  • Operator Controlled Powder-Fluid distribution
  • AC Motor
  • Speed Controlled (Frequency Controlled Inverter)
  • Flushed Double Mechanical Seal – Optional for High Operating Temp
  • Minimizes Processing Time
  • Design Suitable for ClP
  • Low Energy Consumption and High Performance
