Filling machines for ice cream Gelato production RR 3800

RR 3800

Enquire

Rotary filler

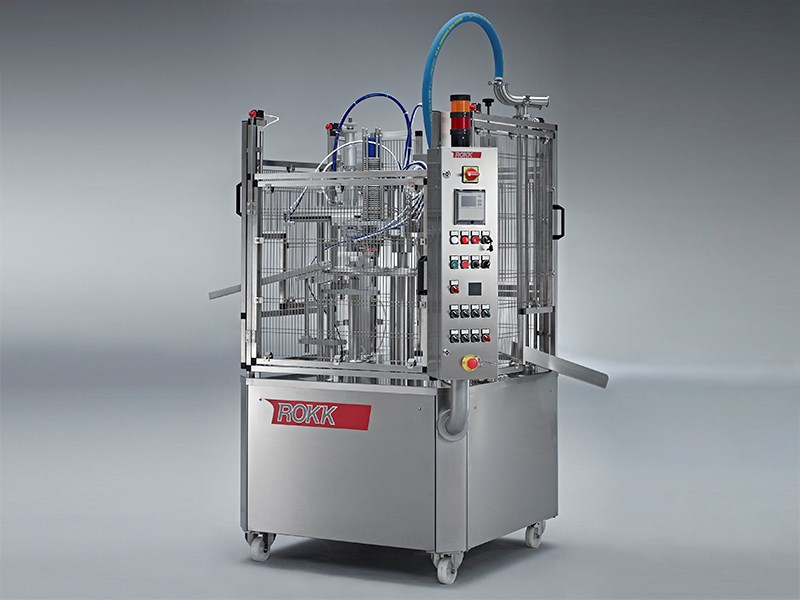

The RR3800 is a formidable rotary ice cream filling machine, capable of facilitating up to 3,800 units (per row) every hour. With adjustable fill volumes of between 50ml and 1litre and a mechanical drive system that uses a combination of standard gearboxes and bespoke lift cams to ensure an accurate movement, the RR3800 is an extremely versatile machine that will have a positive impact on even the smoothest of production lines.

Strong, efficient and compact, each rotary ice cream filling machine is assembled on an over-sized stainless steel and aluminium chassis and uses only the very finest components. Coupled with simple electromechanical controls, the RR3800 guarantees unrivalled performance, control and reliability every time it is switched-on.

The filling assembly of the RR3800 rotary ice cream filling machine is also easily adaptable to suit individual needs and can be fitted with a wide range of nozzles suitable for ripples, inclusions and a multitude of other options including colour separation.

Specifications

Maximum capacity 3800 pieces/hr (per row)
Minimum fill volume 50ml
Maximum fill volume 1 ltr
Maximum Cup diameter 95mm
Dimensions (L x W x H) 105cm x 105cm x 185cm
Electrical consumption 2kW
Air consumption 650 ltr/min
Stations 12
Weight 640 kg

Primary Benefits

Well engineered and highly reliable: Every component and material used in the construction of the RR3800 is of the highest possible standard to ensure extreme reliability day-in, day-out.

Simple controls: All of the controls are electro-mechanical which keeps the machine simple, reliable and very easy to maintain without the need of expert engineering.

Over table workings: The above-table-workings use a well thought out combination of mechanical movements running from the heart of the machine and versatile pneumatics. ROKK only uses globally renowned Festo pneumatics on its machines to ensure worldwide back-up and support. Simultaneously, the unique twin grip container dispensing system makes light work of problem pots and lids.

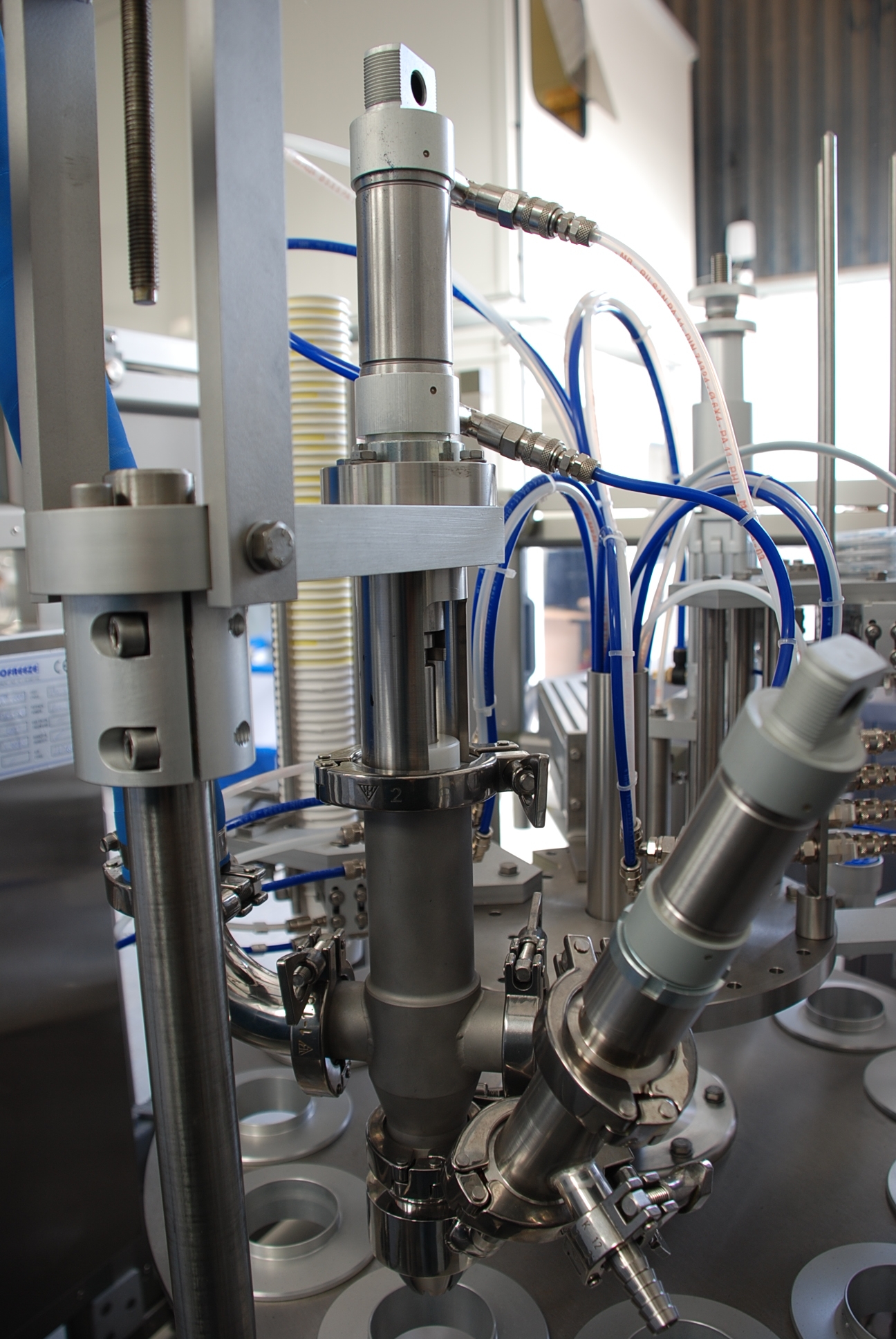

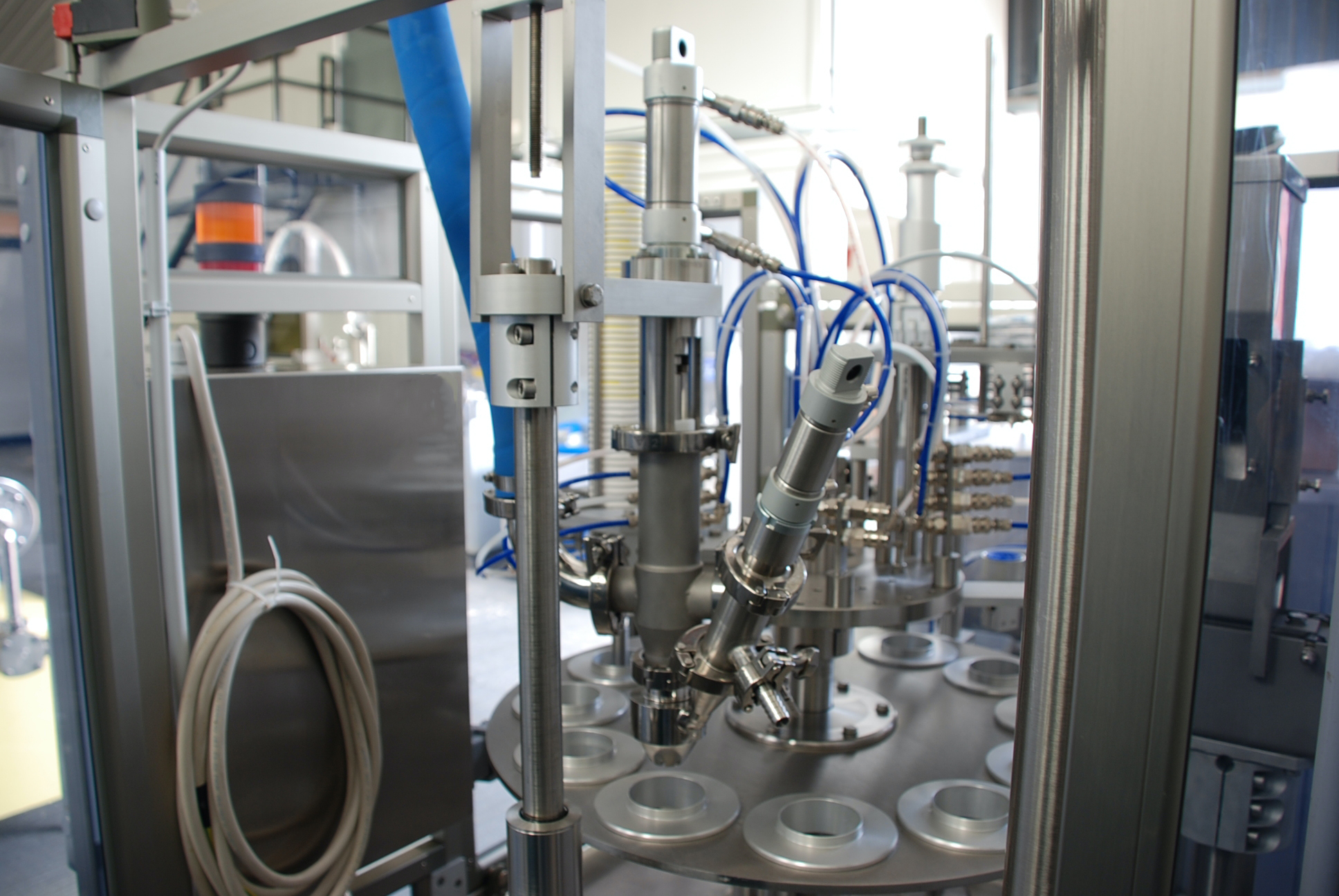

Filling heads: The filling assembly is easily adaptable to suit individual needs and can be fitted with a wide range of nozzles for ripples, inclusions and a multitude of other options including colour separation. ROKK can also provide a wide range of nozzles for creating unique presentations of ice cream and sorbet.

Drive and Engine: The complete drive system is mechanical and uses a combination of standard off-the-shelf gearboxes and bespoke lift cams to ensure a smooth, robust and accurate movement.

Chassis: The chassis of the RR3800 is built entirely out of stainless steel and aluminium using plates up to 15mm thick.

Change parts: ROKK can supply a wide range of change parts including tubs, cups and cones from 50ml to 1000ml.

CIP: The RR3800 is fully CIP cleanable in line with a freezer and a fruit feeder.

Advanced options

  • Filler options - ripple, swirl, inclusions, fluted, bespoke
  • Chocolate spray
  • Dry ingredients feeder
  • Sauce dispenser
  • Heat sealer for tamper proof lids
  • Ink jet coding
  • Crimping device
  • Heated chocolate tank
  • Cup spinners

Additional information

For more information about the ROKK RR3800 rotary filler, please call +44 (0)1455 220179 or email sales@rokk-processing.com
